20 Amp 12/24 Volt 2 Bank Waterproof Marine Battery Charger U471439
20 Amp 12/24 Volt 2 Bank Waterproof Marine Battery Charger U471439

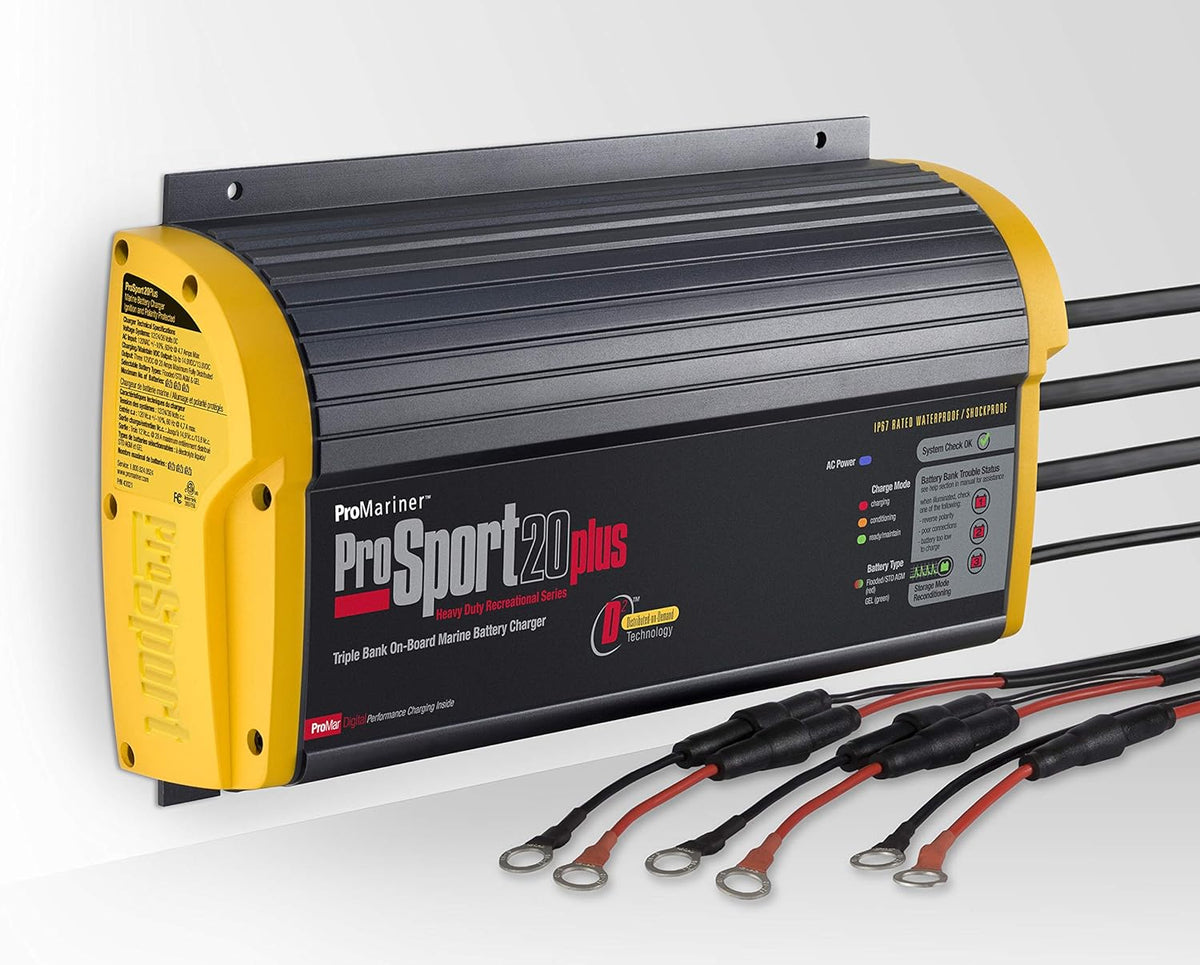

The 12/24/36V, 20 Amp, 3 battery bank ProSport 20 Plus waterproof battery charger delivers fast efficient charging in a lightweight design.Distributed on Demand Technology utilizes 100% of the available charging amps and automatically distributes charge amongst all the batteries as needed . The result is faster, more efficient charging.Advanced technology eliminates time consuming troubleshooting by clearly indicating system and battery connections are OK or if a fault is present on a specific battery bank.During short or long-term storage, ProSport automatically reconditions all batteries on board once a month for maximum battery life and performance.Compact and rugged aluminum design, dual in-line DC safety fuses for trolling motor and house battery banks. Built-in over-voltage, overload, over-temperature, reverse polarity and ignition protection.Digital LED Display and Battery Type Selector: LED indicators for Charging, Conditioning and Auto Maintain modes in addition to AC power and selected battery type.

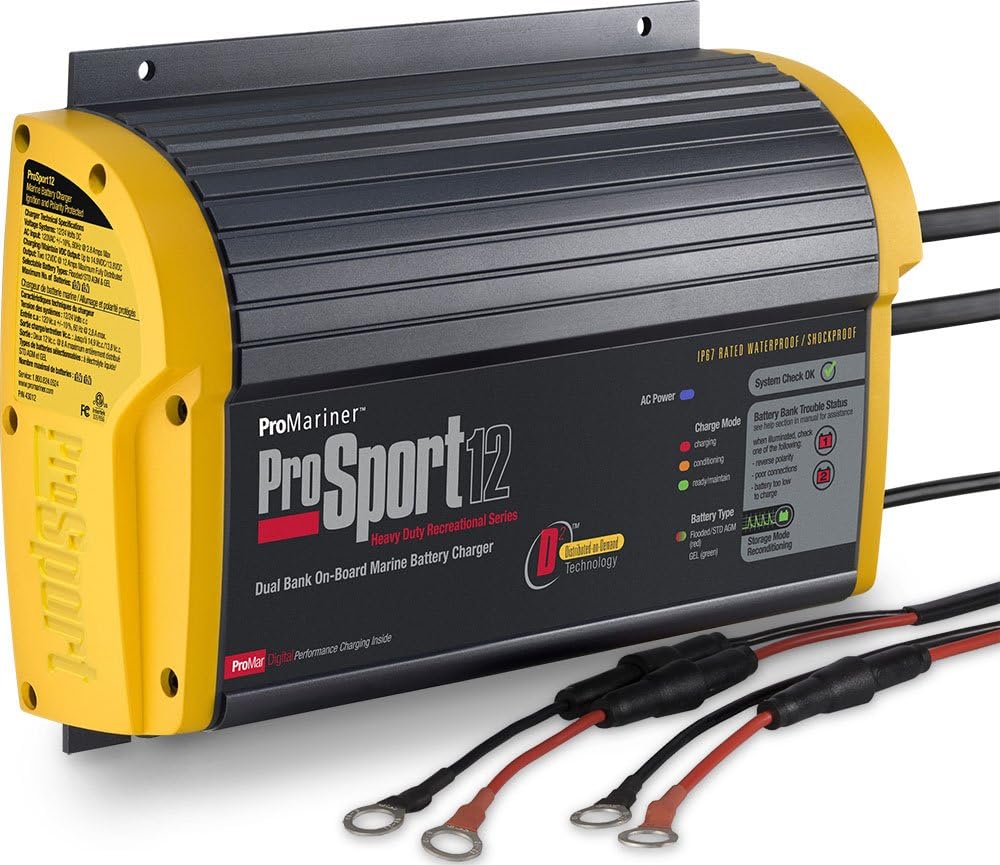

| ProSportHD 6 | ProSportHD 8 | ProSportHD 12 | ProSportHD 20 | ProSportHD 20 Plus | |
|---|---|---|---|---|---|
| Part# | 44006 | 44008 | 44012 | 44020 | 44021 |
| DC Voltage System | 12V | 12/24V | 12/24V | 12/24V | 12/24/36V |
| Amps | 6 Amps | 8 Amps | 12 Amps | 20 Amps | 20 Amps |
| Number of Batteries | 1 | 2 | 2 | 2 | 2 |
| AC & DC Cable Length | 6" | 6'/6' | 6'/6' | 6'/6' | 6'/6'/6' |
| Size | 7.9"x7.7"x2.9" | 7.9"x8.9"x2.9" | 7.9"x10.5"x2.9" | 7.9"12.8"x2.9" | 7.9"x12.8"x2.9" |
| Weigth | 3.8 lbs | 5.2 lbs | 6.0 lbs | 7.2 lbs | 7.8 lbs |
| AC In | 120V AC ± 10% 50/60Hz | 120V AC ± 10% 50/60Hz | 120V AC ± 10% 50/60Hz | 120V AC ± 10% 50/60Hz | 120V AC ± 10% 50/60Hz |
| Battery Chemistry: Flooded, AGM, Gel | Yes | Yes | Yes | Yes | Yes |
| Battery Chemistry: AGM HP | No | No | No | Yes | No |
