56MM 3 Row Core Aluminum Radiator with 2X12 Fan and Shroud L707407
56MM 3 Row Core Aluminum Radiator with 2X12 Fan and Shroud L707407
Leading-edge Welding Craftsmanship, CE Approval. High Performance Racing Design, Improves Cooling by 35 -45% Temp
Full T-6061 Aluminum Construction, 100% Welded By TIG
Light Weight Direct Bolt-On OEM Fitment or Replacement, Stronger & Higher Capacity for Coolant than Stock One
Build-in Trans Oil Cooler
Local Delivery, 3-5 Days Will Be Delivered &Lifetime Warranty for Every Item. Any Issues, Email Us

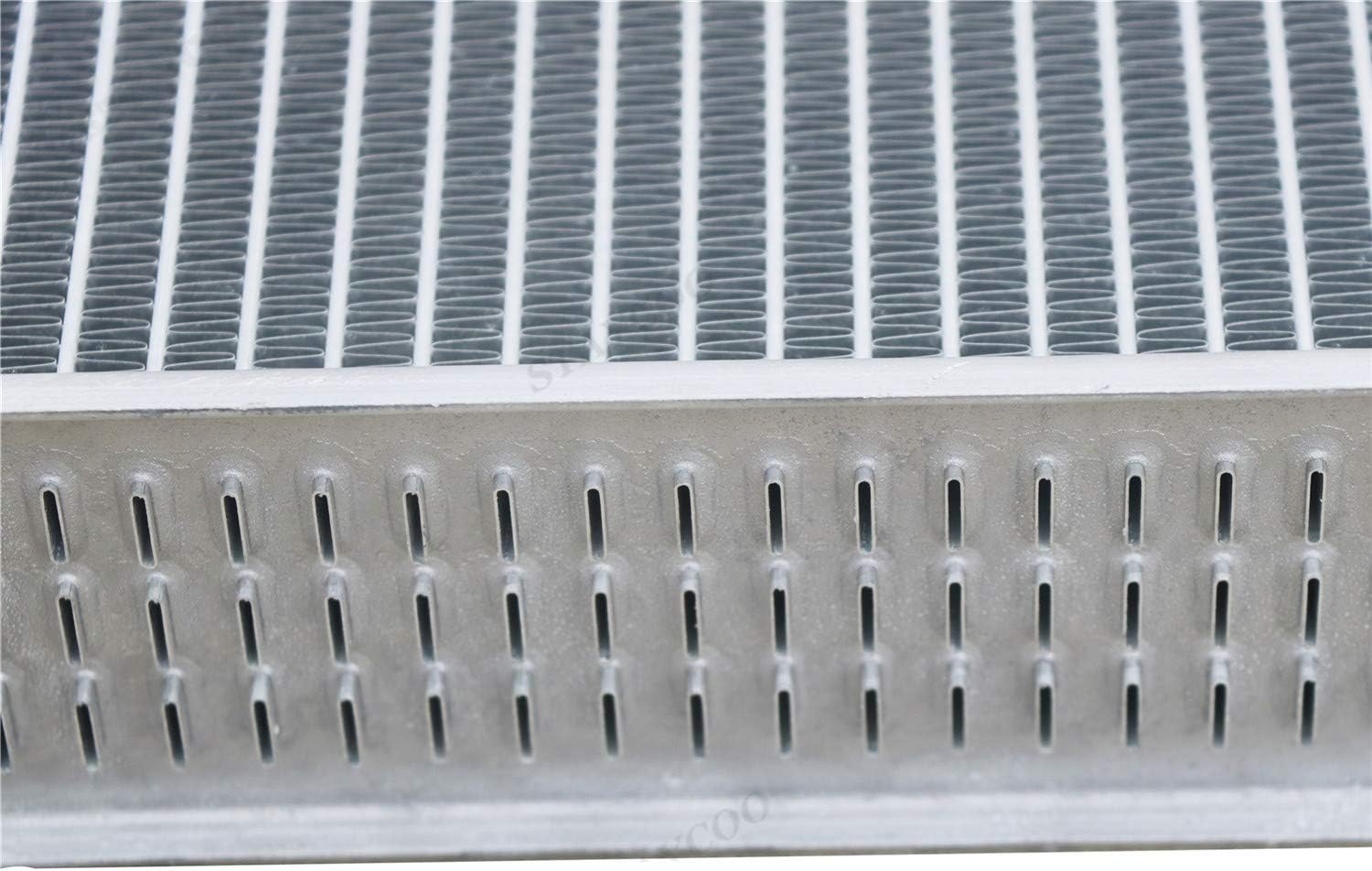

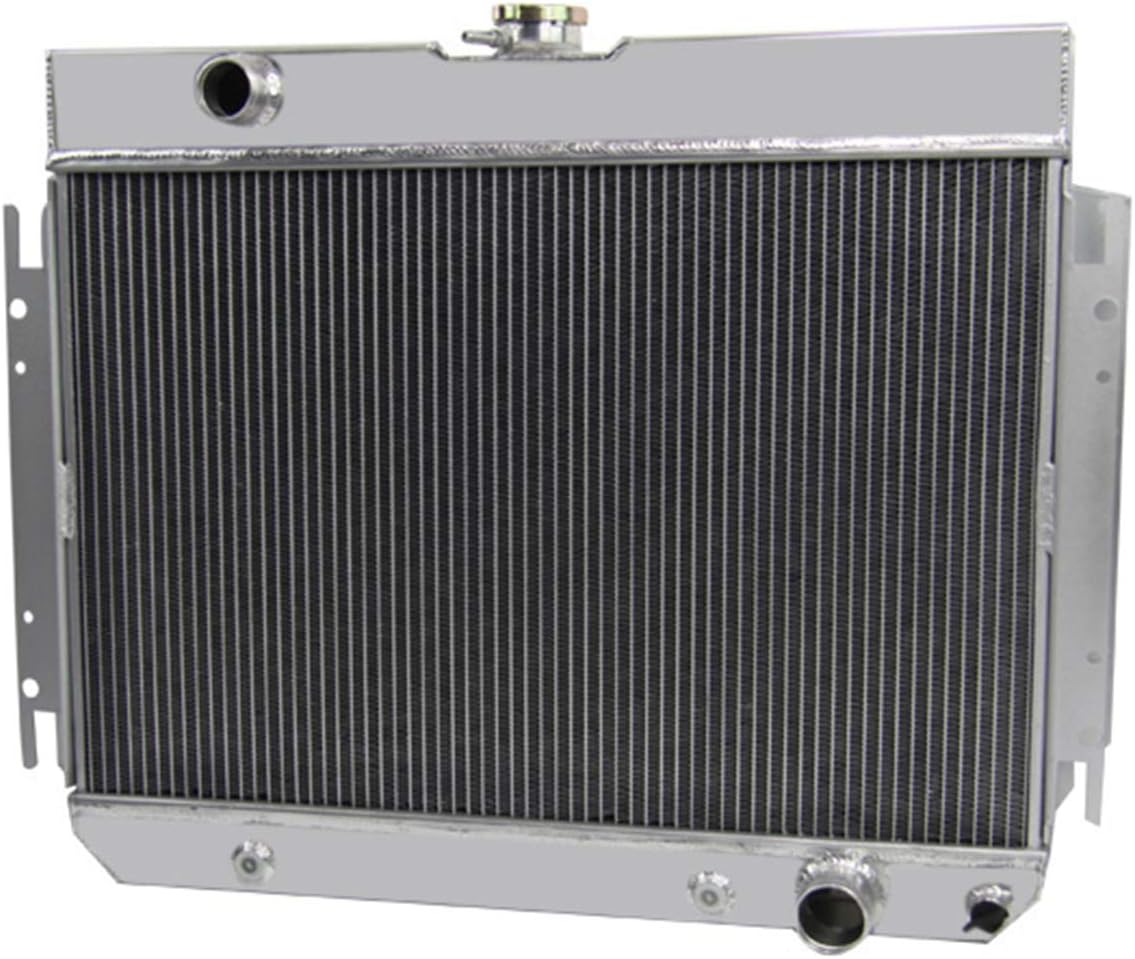

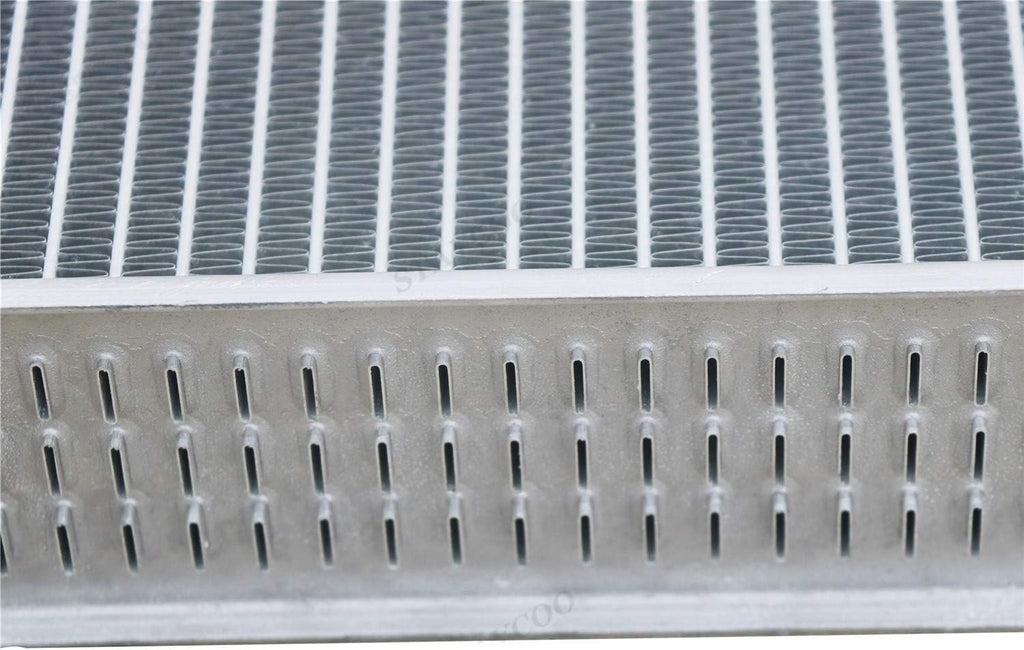

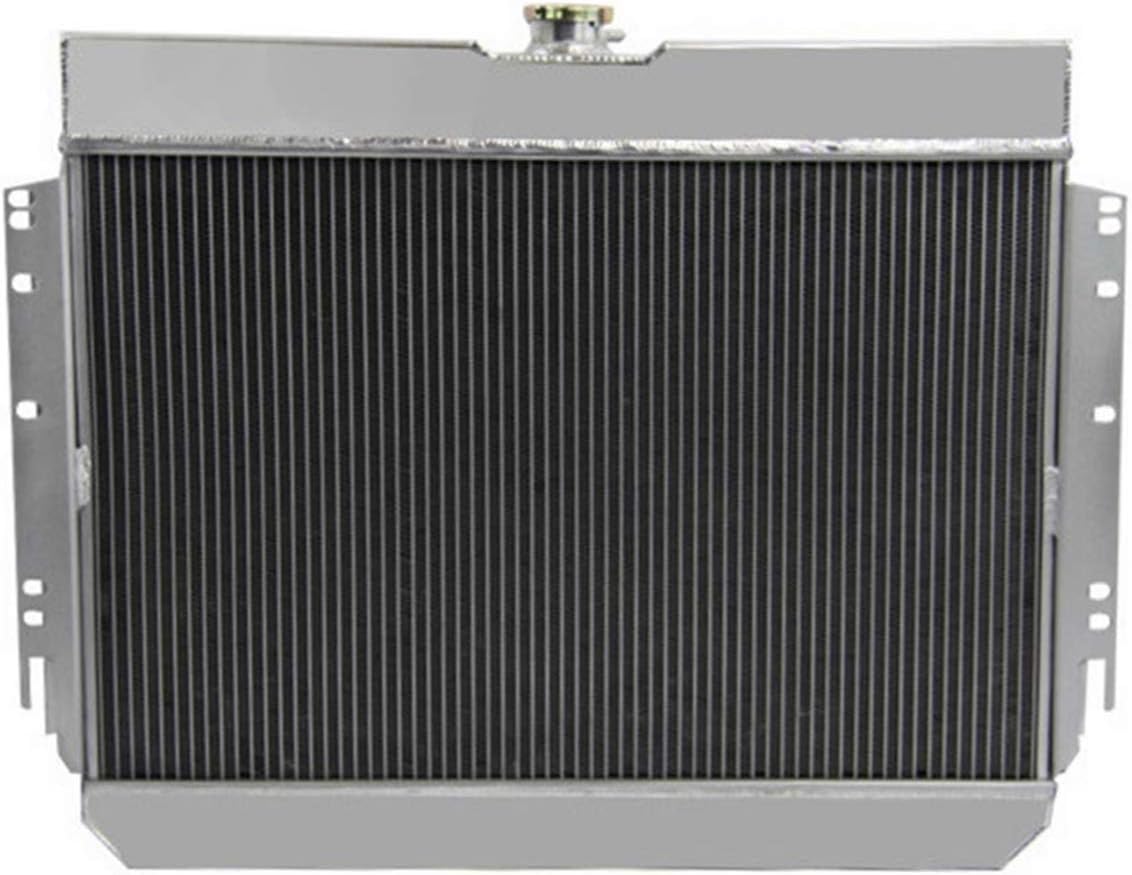

The aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight,and high heat transferring aluminum features a tube and fin design that,dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 40% more efficient than stock ones. Most importantly,it has a much higher capacity for coolant than stock ones,which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
Radiator Flow: DOWN FLOW
Overall Dimensions: 22-1/4' H x 27-3/4' W
Core Thickness: 2-1/8' (3row)
Core Dimensions: 16' H x 25-1/4' W
Upper Inlet: 1-1/2' located on the Driver side
Lower Outlet: 1-3/4' located on the Passenger side
Trans Cooler Thread Size: G1/4
Mount Type: Bracket

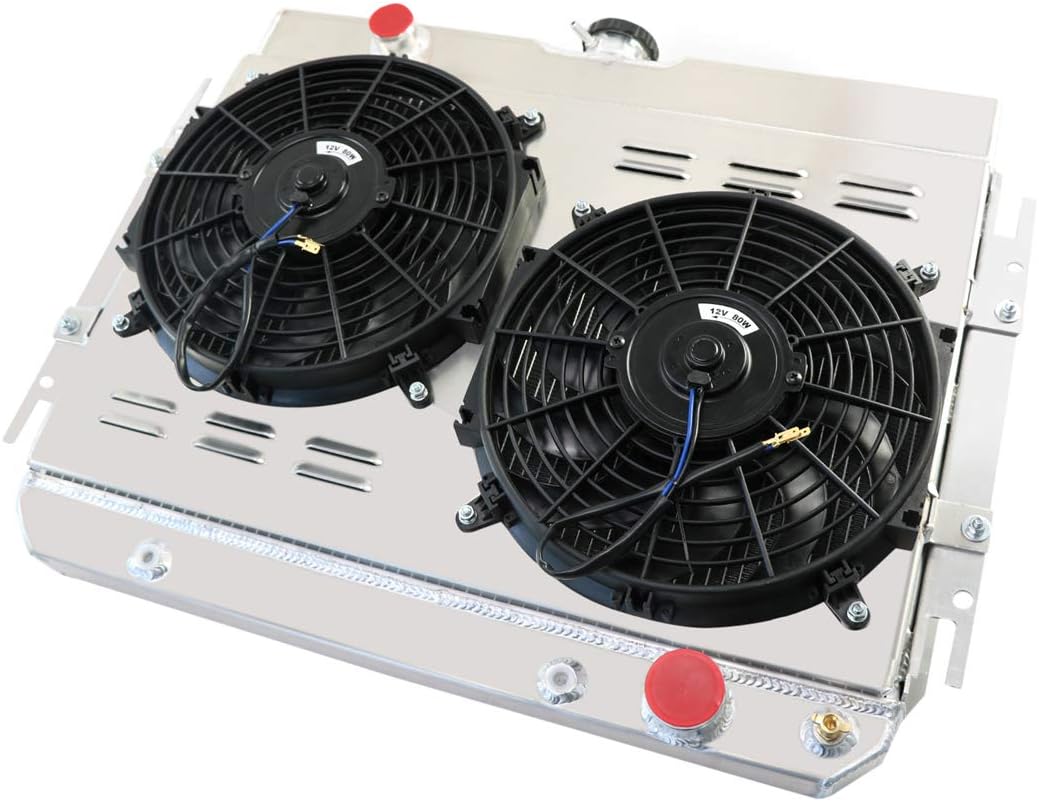

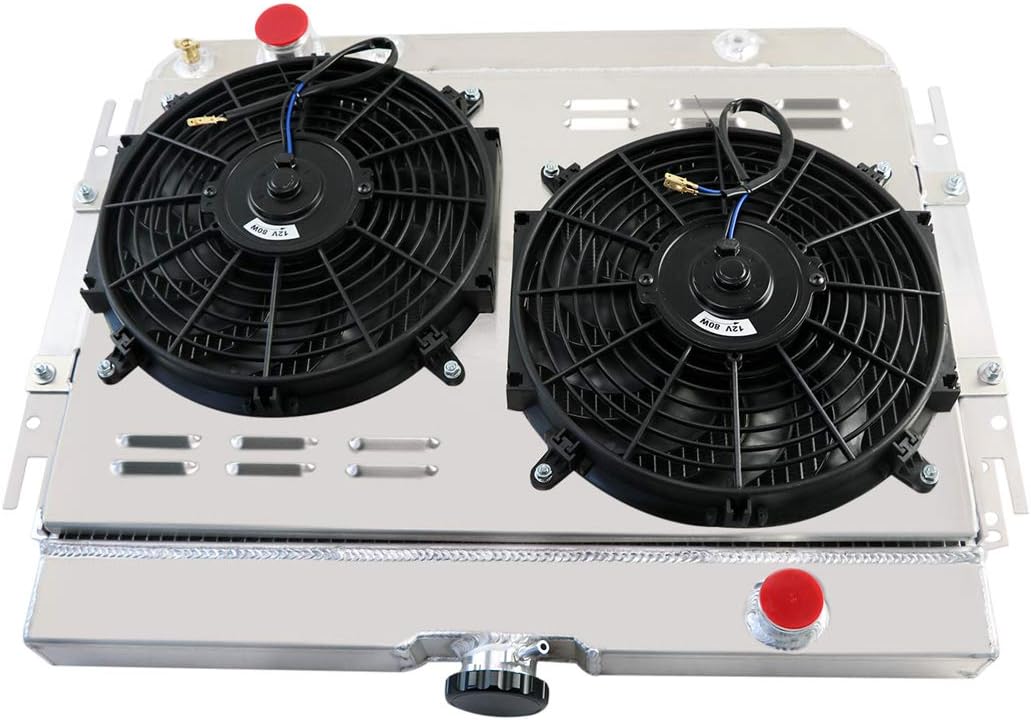

The fan will continuous improve engine cooling functions and the overall performance of your vehicle. All fan shrouds are obviously lighter than your stock one, and are a direct fit the radiator. They will notably improve engine cooling performance by delivering more air to the radiator and driving out excess heat.
Fan Diameter: 12.05'
Motor V/W: 12V/80W
Maximum Fan CFM: 1730 cfm
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Amp Draw: 12.70amps

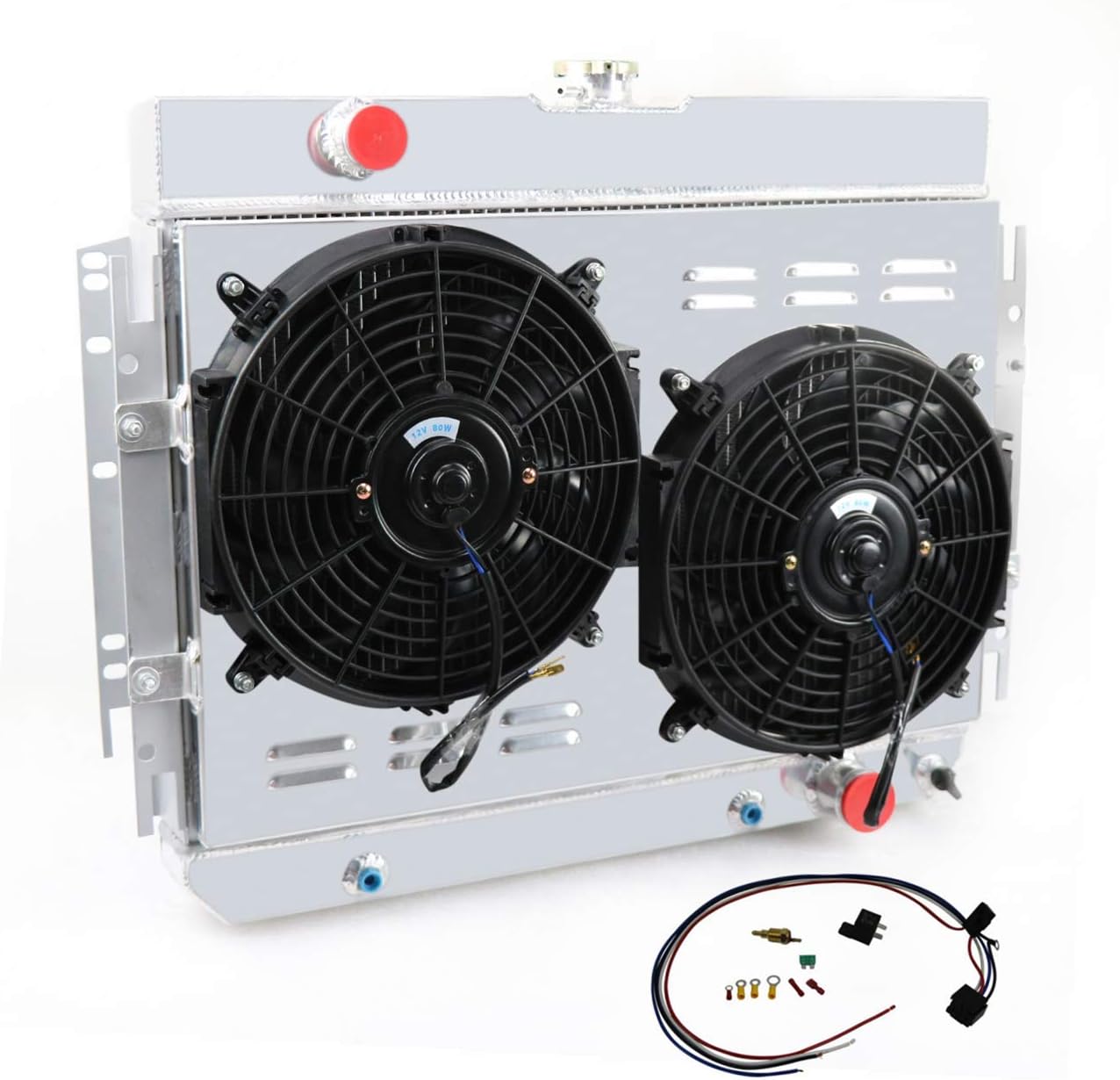

Package includes:
1x radiator
1x shroud
2x fans

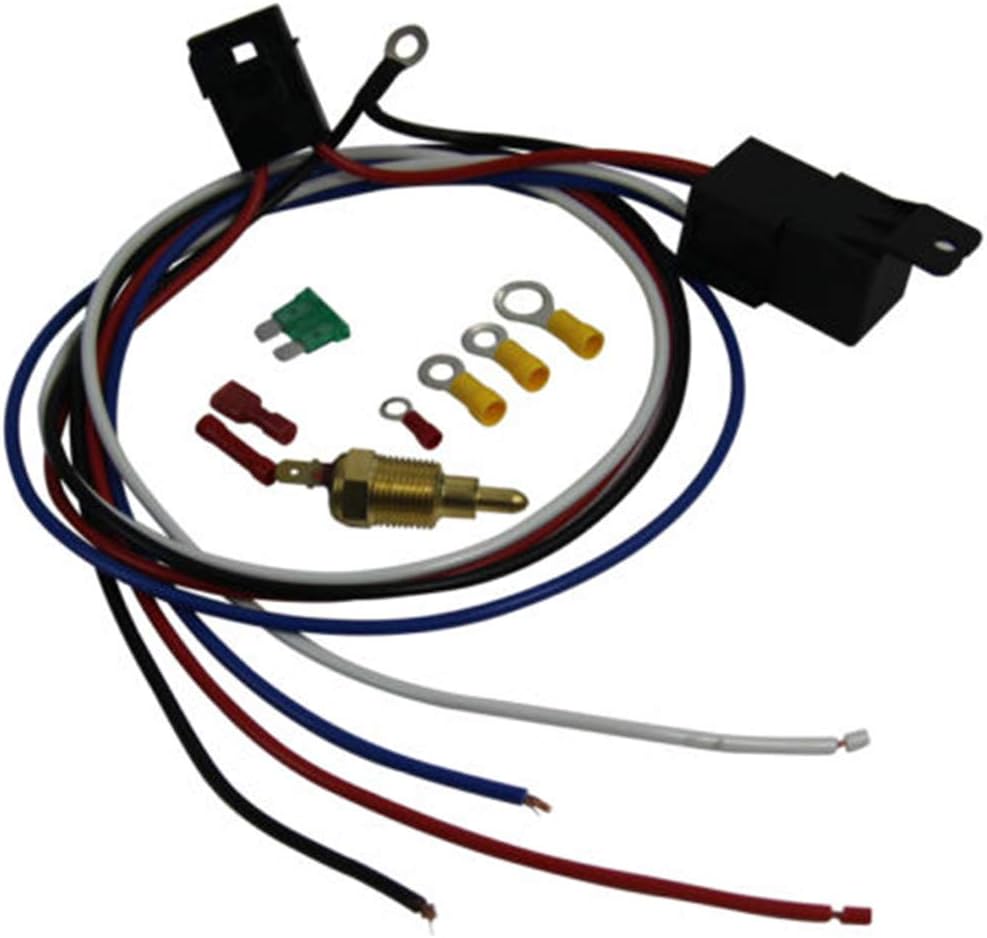

1x thermostat relay kits
