Hand Wheel Test Stand E481
Sale price
$33.99
Regular price $115.94
Skip to product information

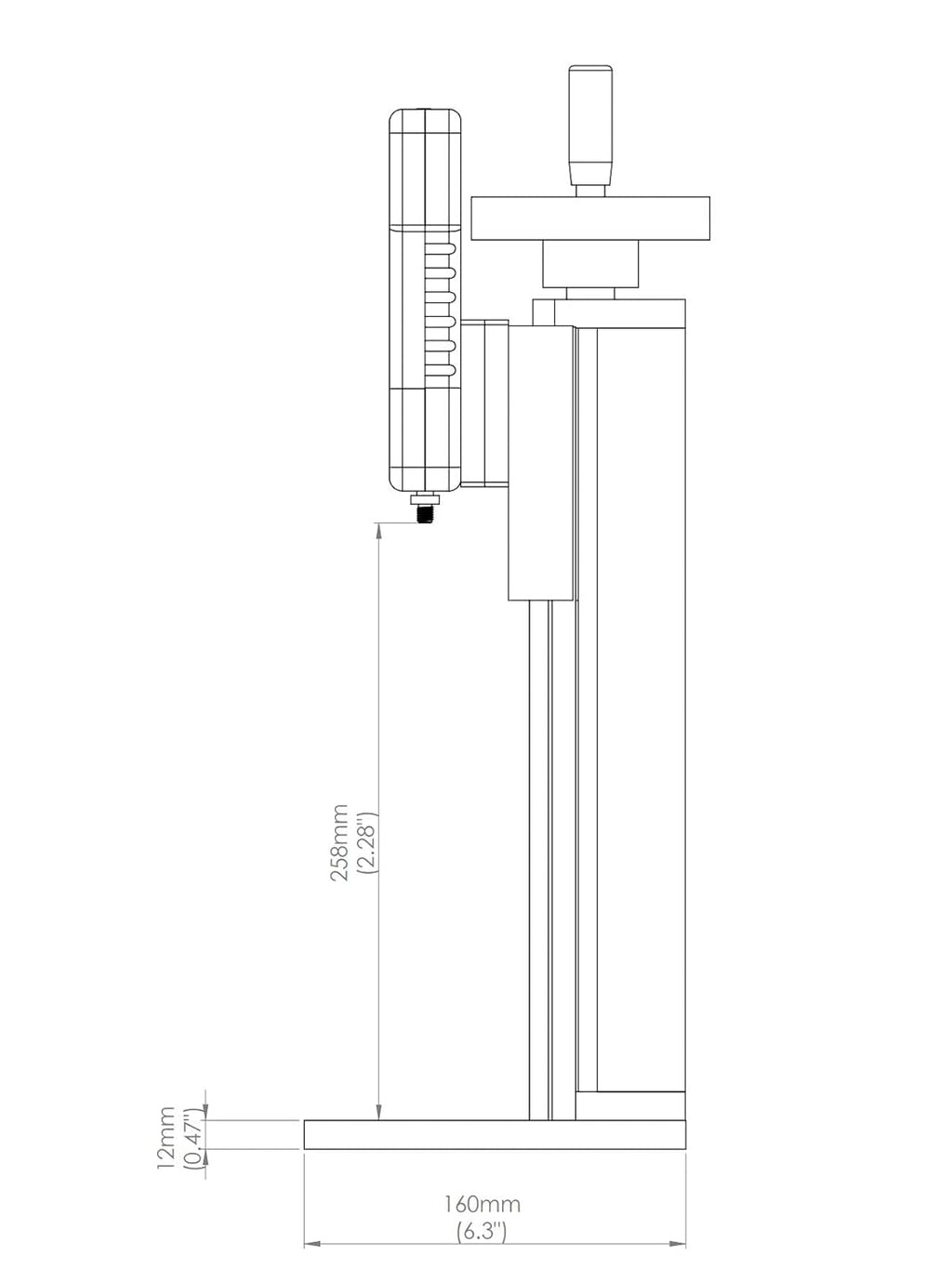

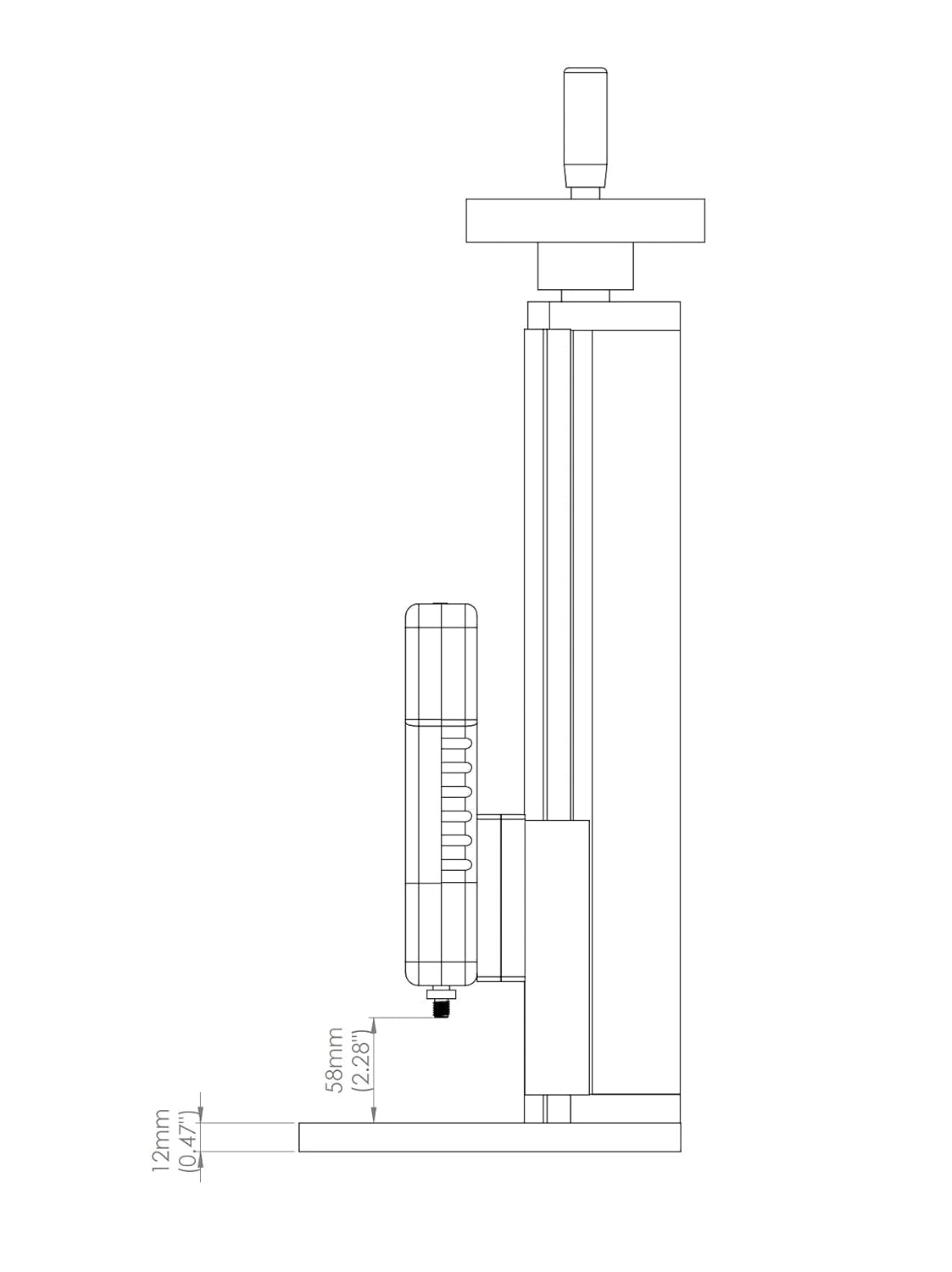

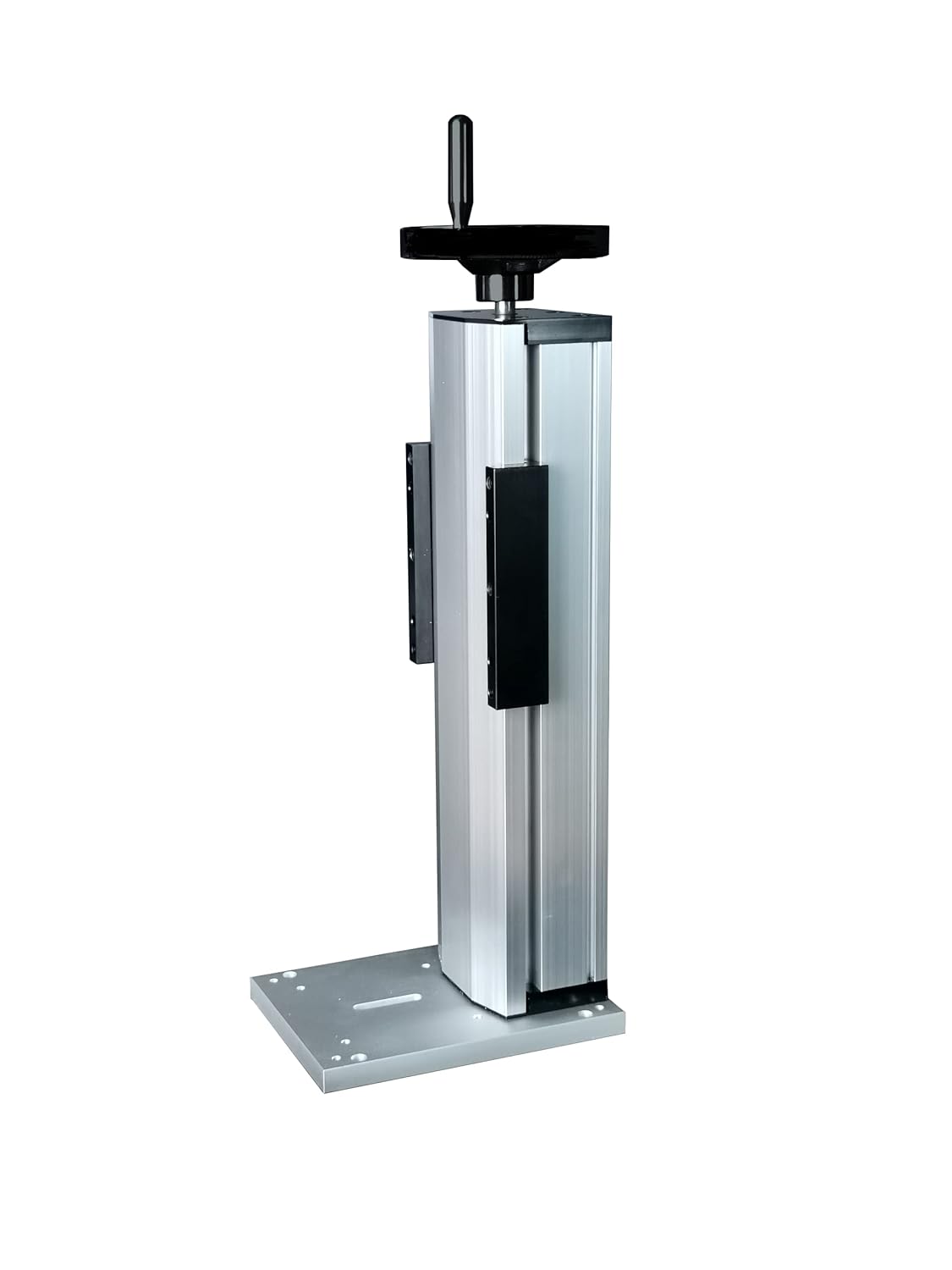

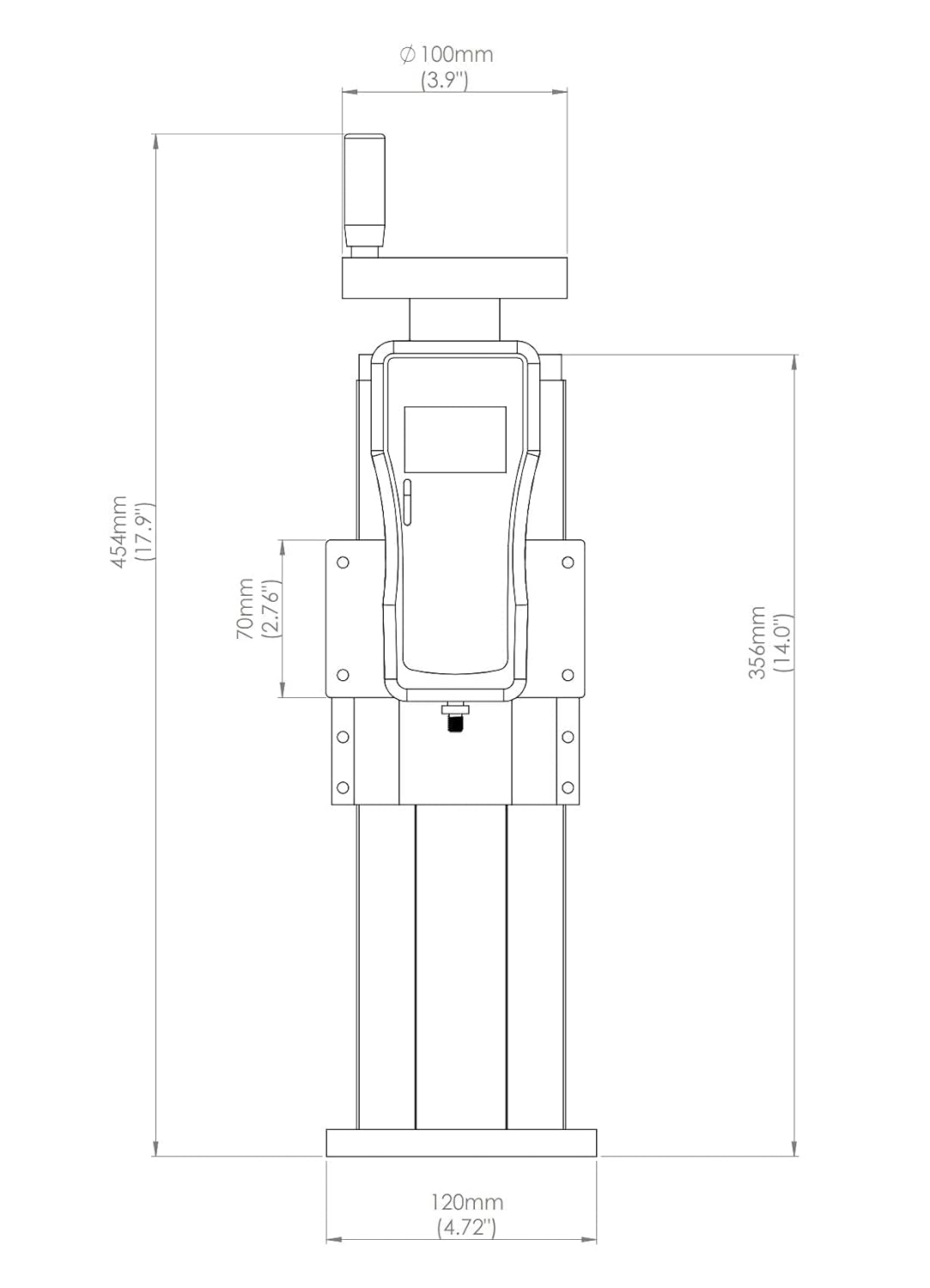

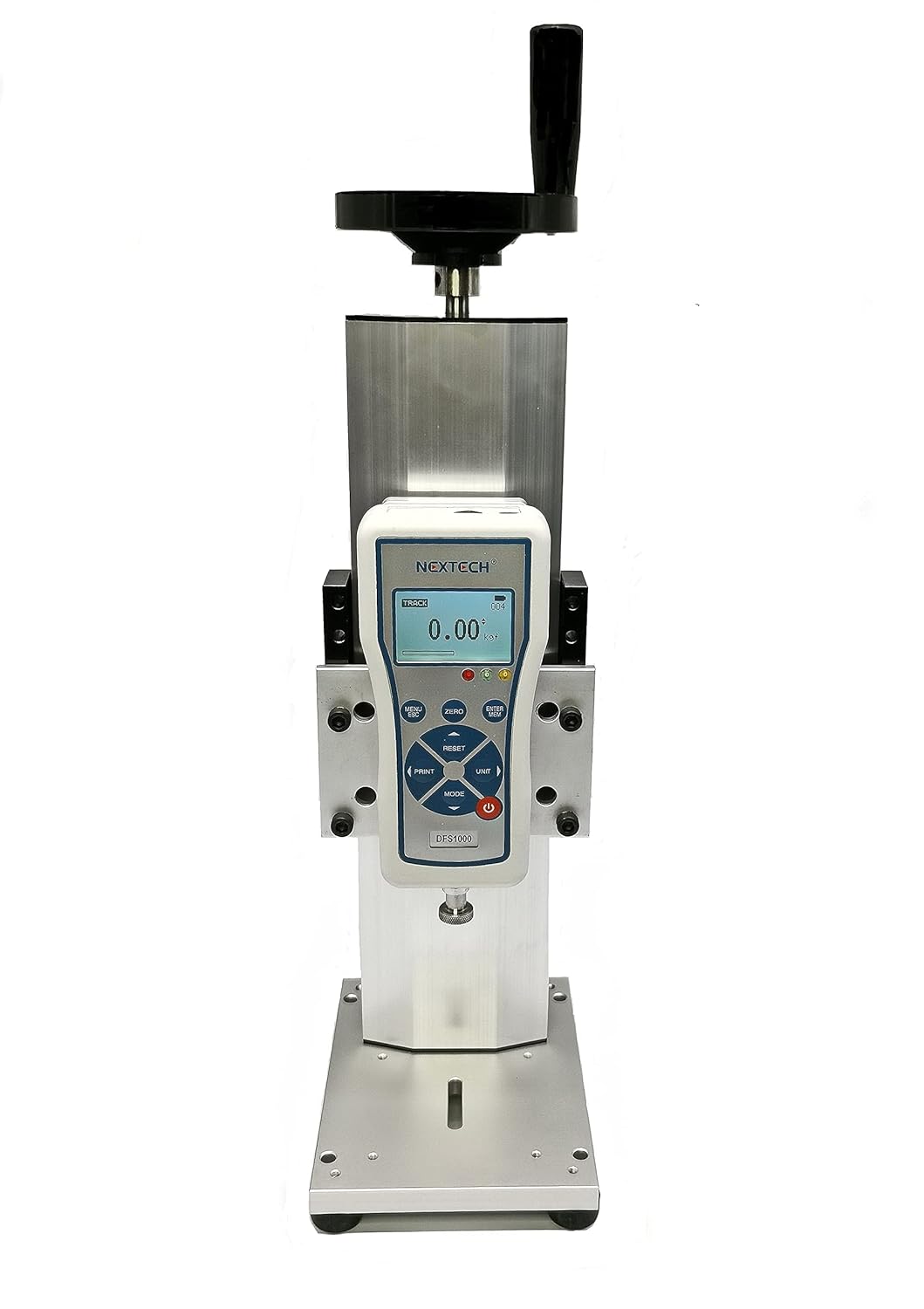

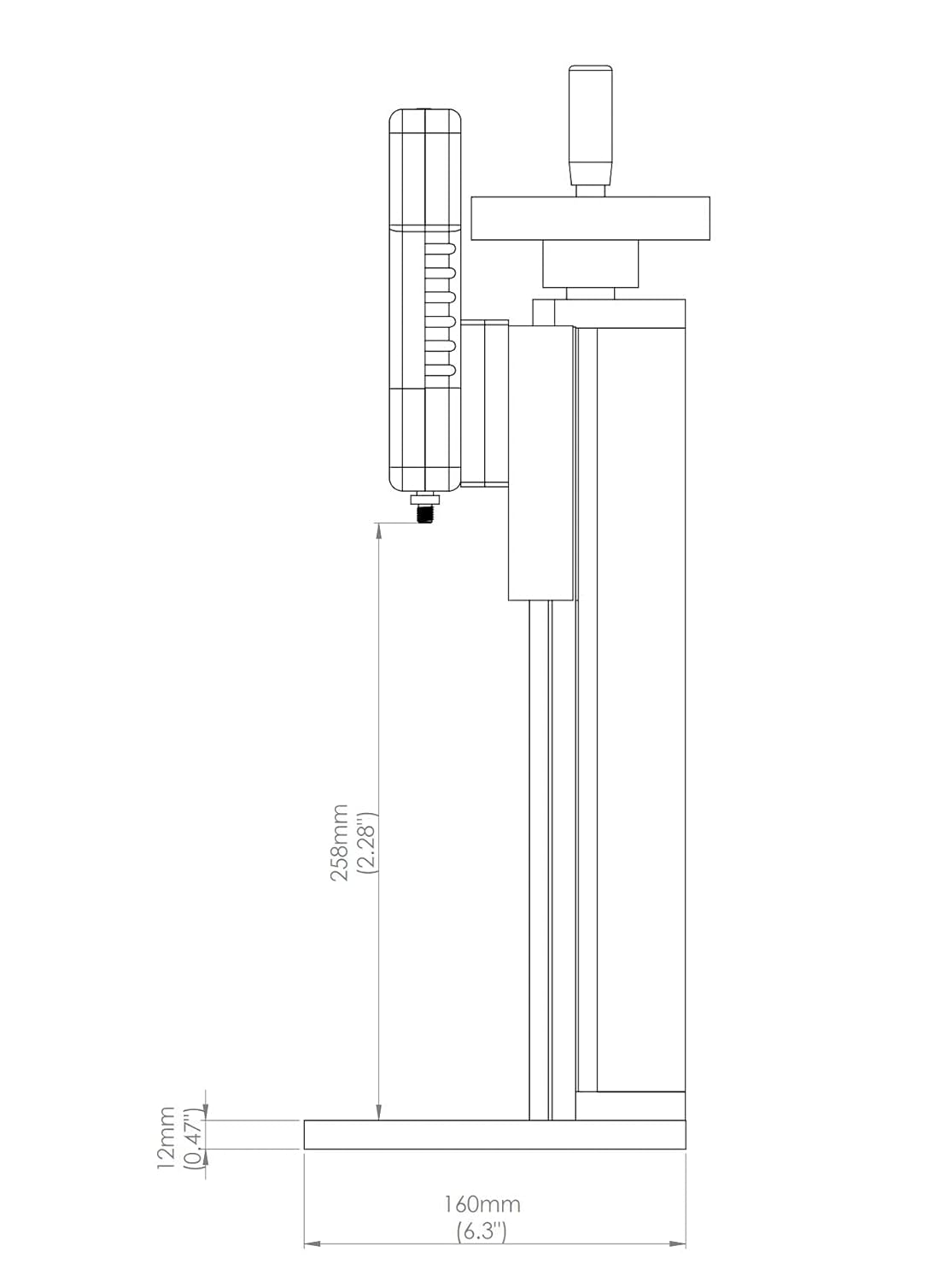

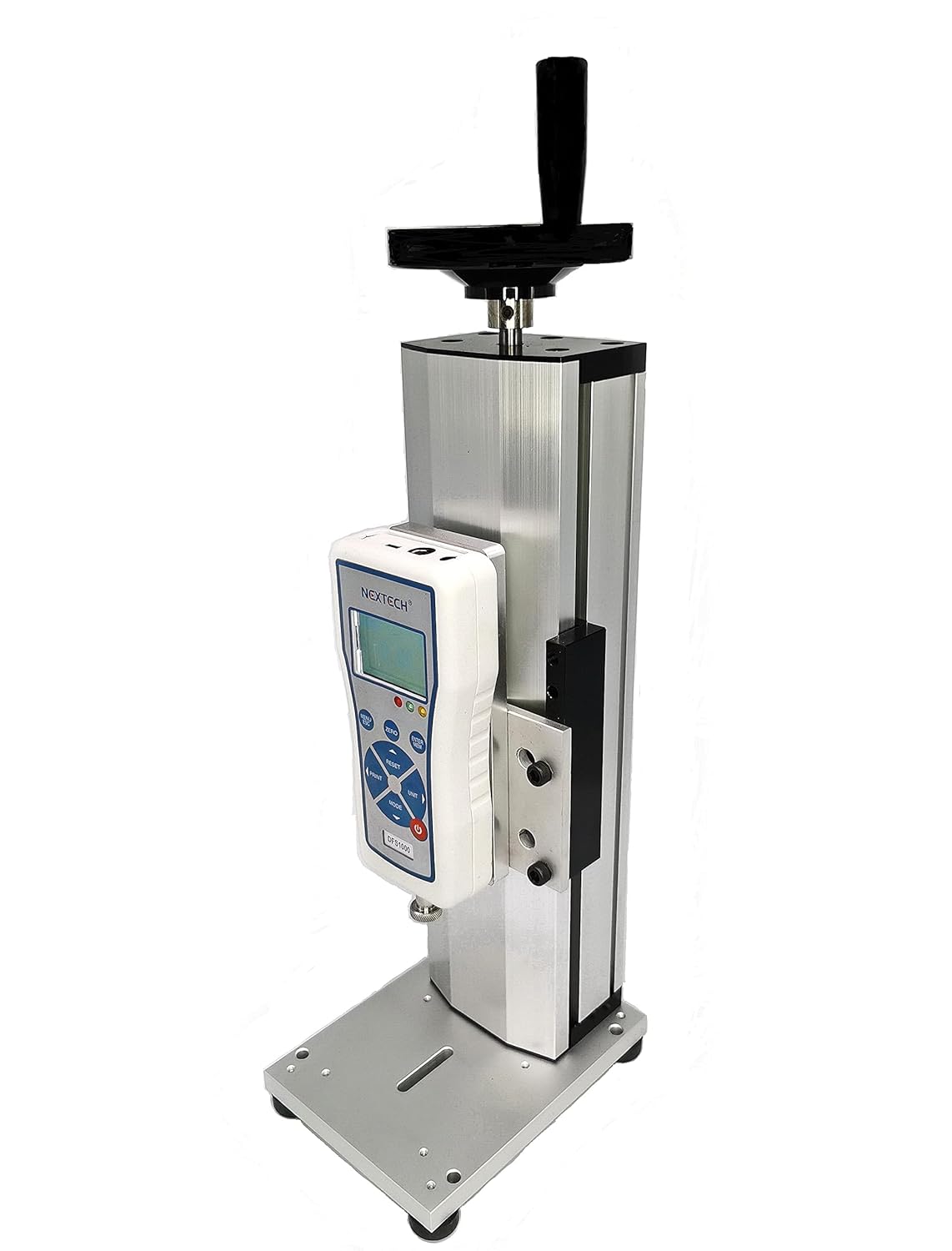

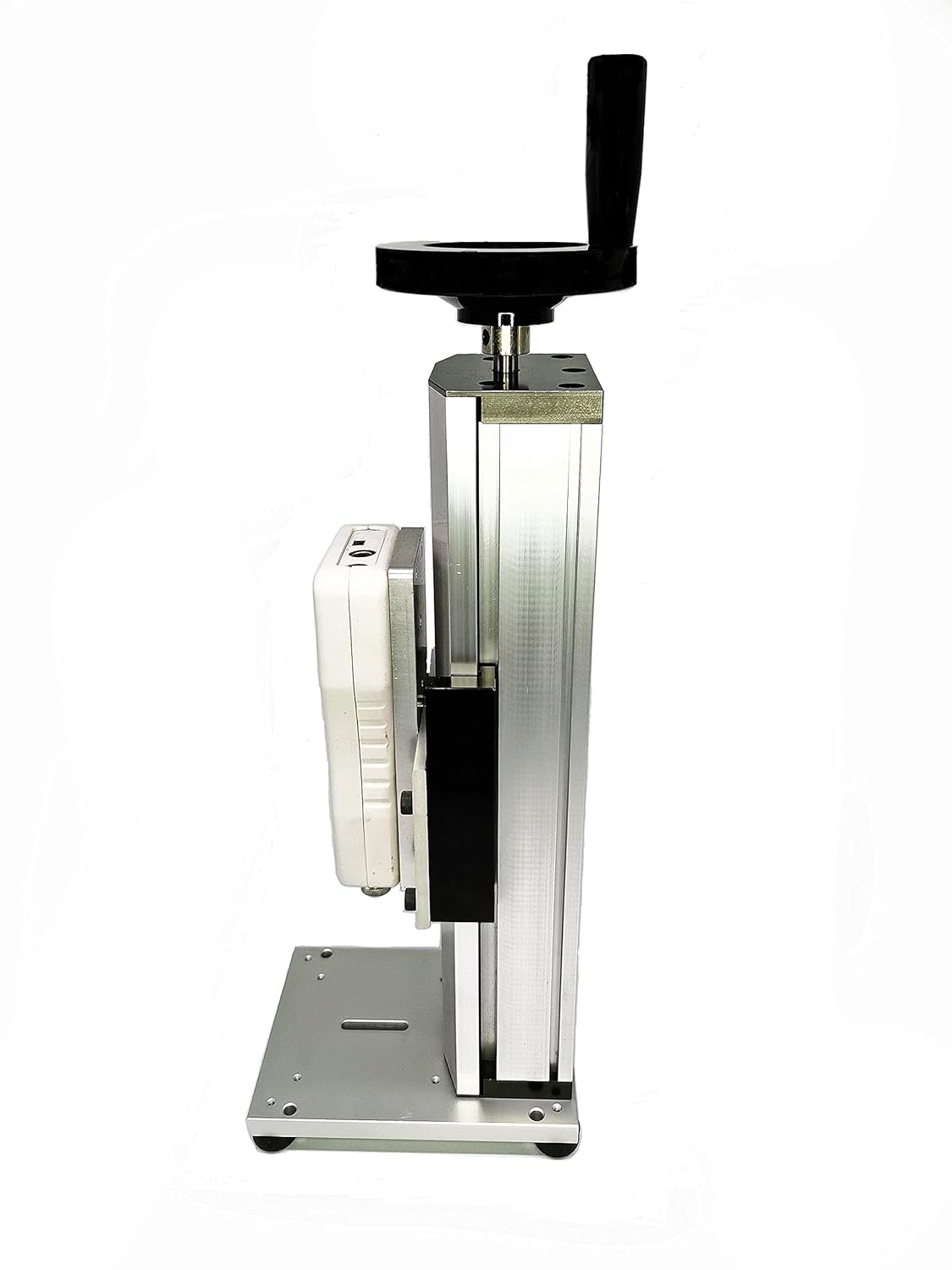

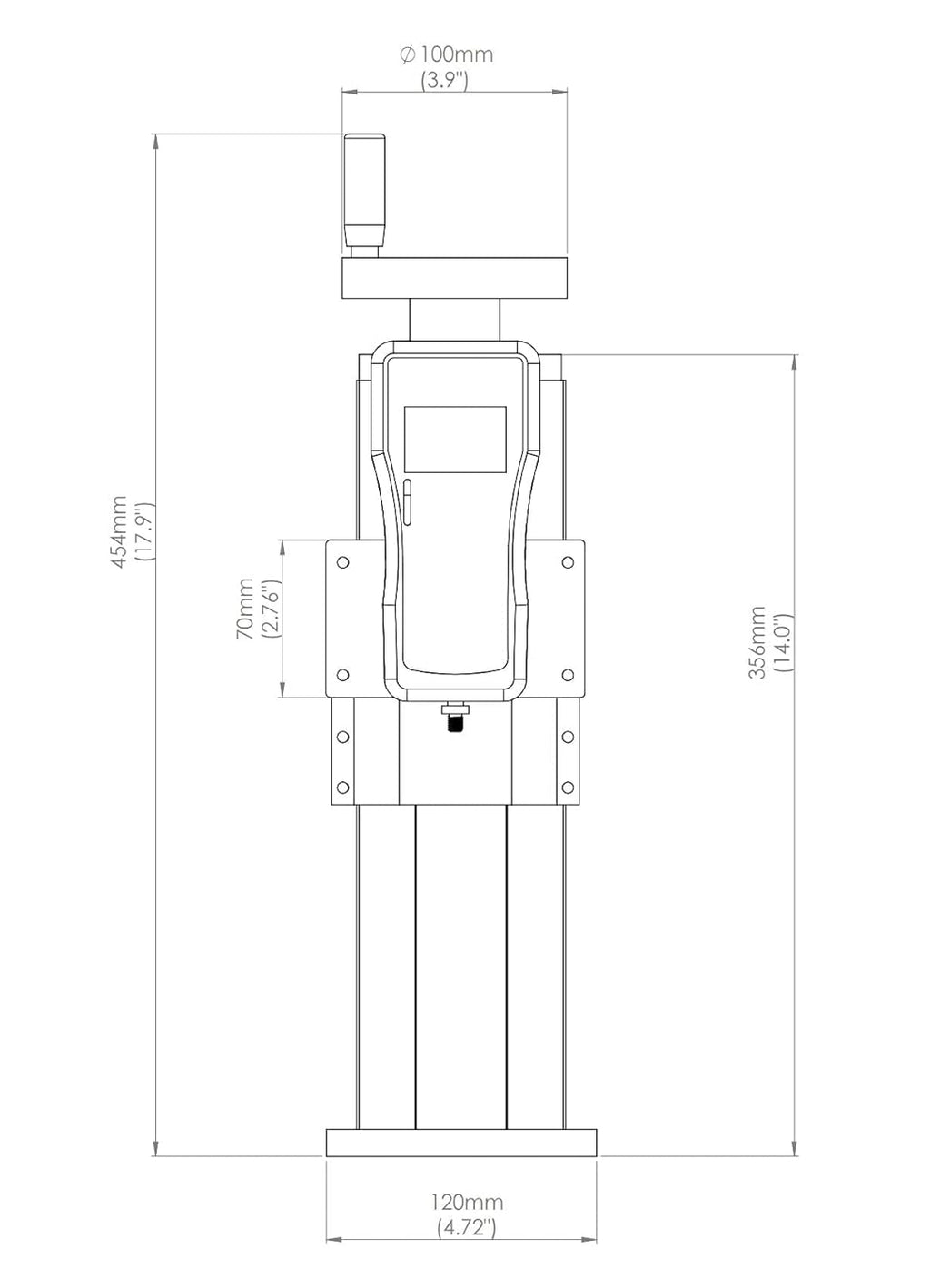

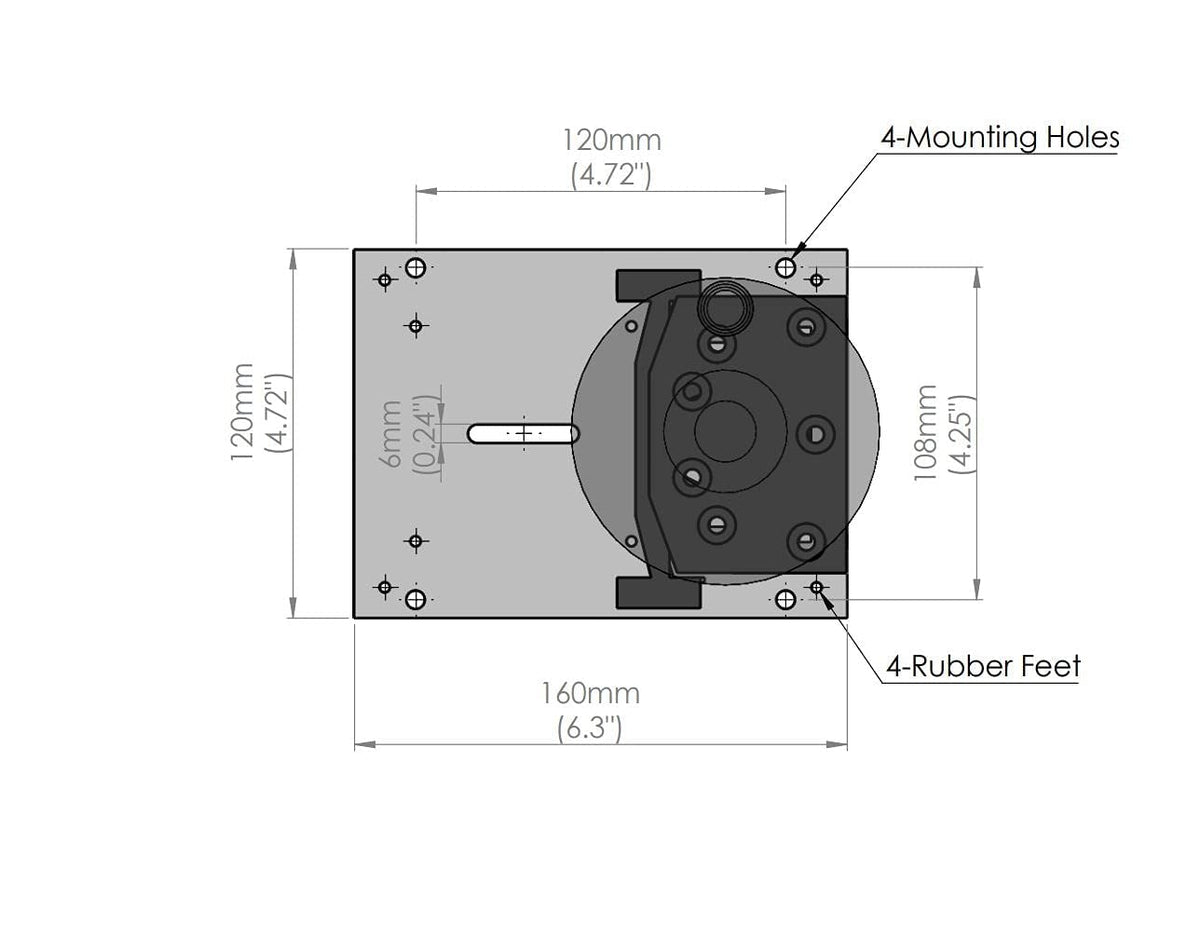

Rated load for test stand is up to 1000N (220lbf/100kgf). Maximum Tension/Compression load 1200N(264lbf/120kgf).Test Stand work in Tension or Compression Mode.Included 7 pieces stainless steel accessories set, 2 gauge mounting plate & screws. (grip & clamp not included).Gauge work in Peak Hold, Track, Tension & Compression Mode.Test stand Dim L 6.3" x W 4.72" x H 17.9" WT 4.2 kgTest stand provide precise force control with 5mm displacement for each turn of the hand wheel. To apply maximum force only light weight (small torque) is require on the on wheel due to friction free ball nut ball screw system. Load mounting plate at the bottom have 6mm slot for easy mounting of grip or clamp.Assembled with Nextech DFS model force gauge. Please see Nextech DFS Series for force gauge optionsPlease note that this product does not include a force gauge
Hand Wheel Test Stand E481
Sale price
$33.99
Regular price $115.94
Shipping calculated at checkout.
