Portable Camera-Mount Wireless Microphone System Q168383
Portable Camera-Mount Wireless Microphone System Q168383
Operates in the 2.4 ghz range completely free from tv interference
Extremely easy operation with instantaneous channel selection, sync and setup and three levels of diversity assurance: frequency, time & space for seamless interference free operation

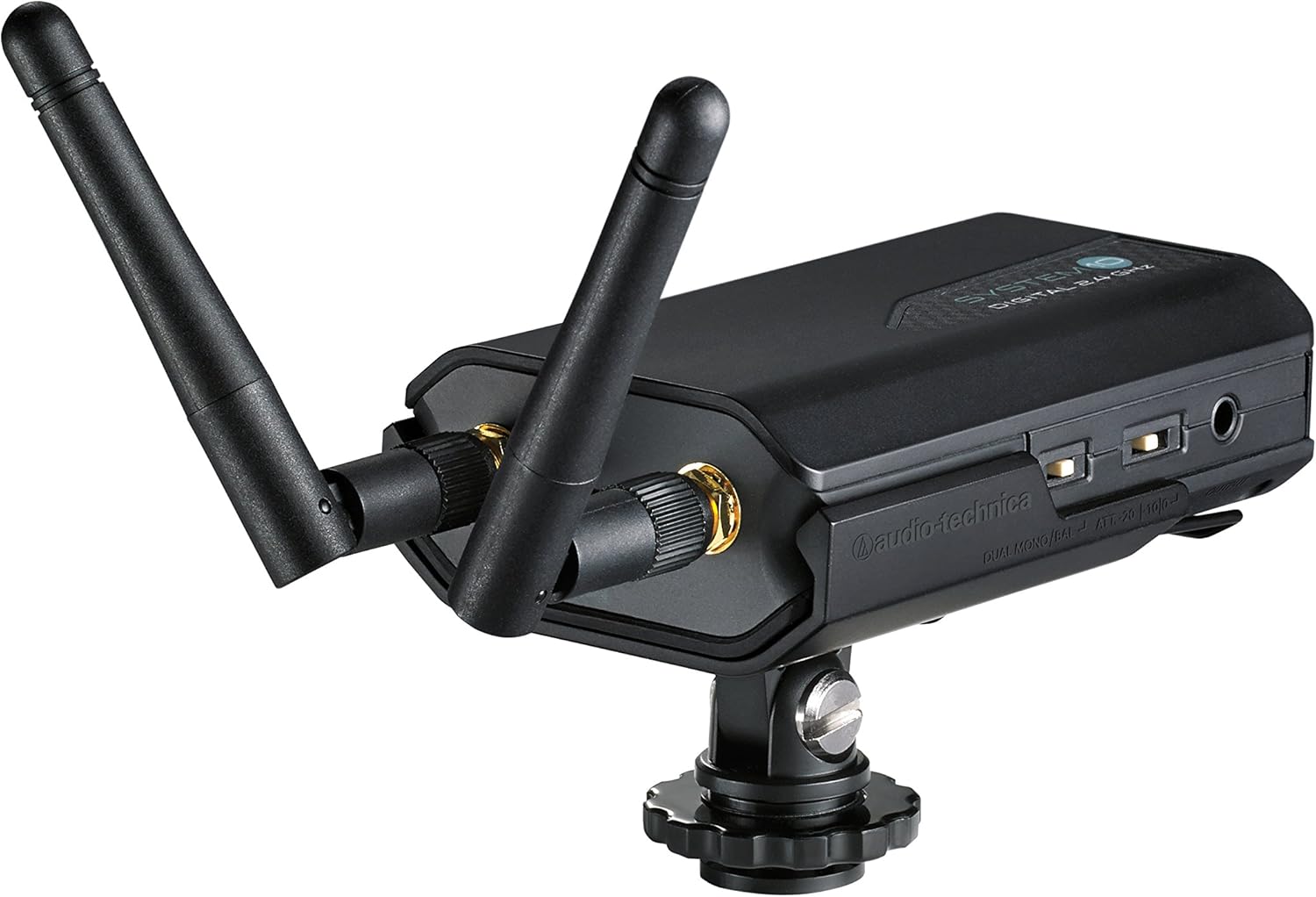

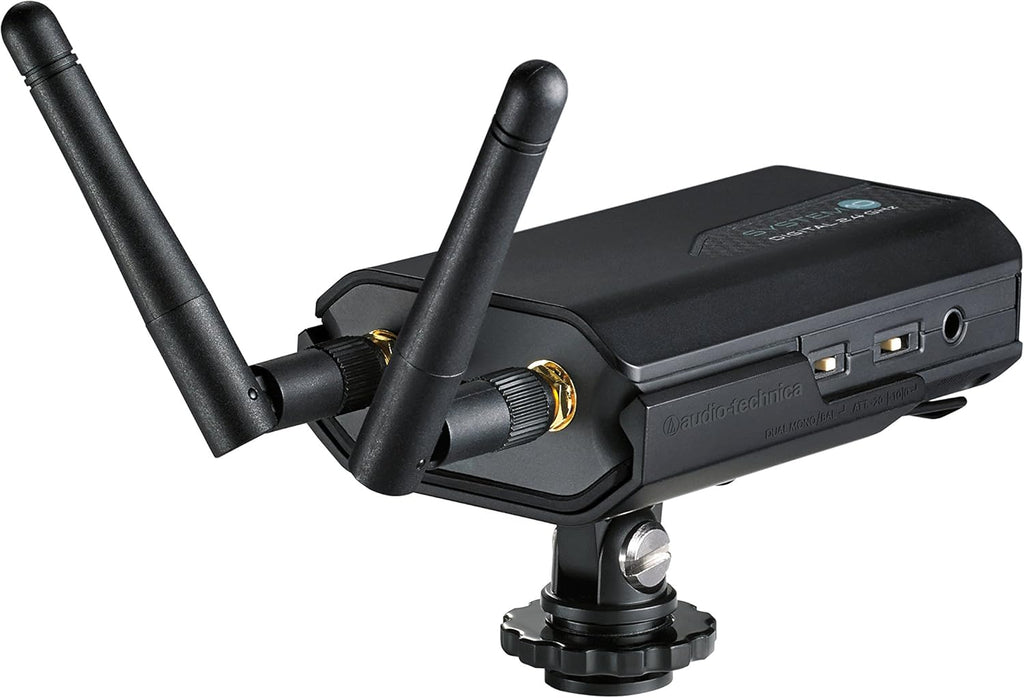

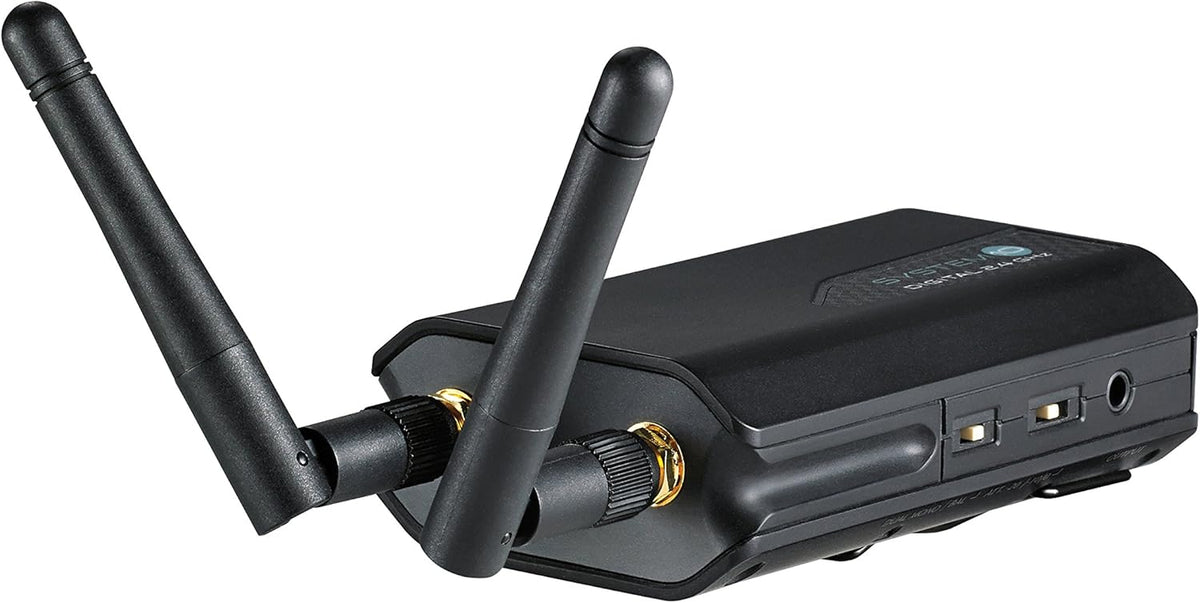

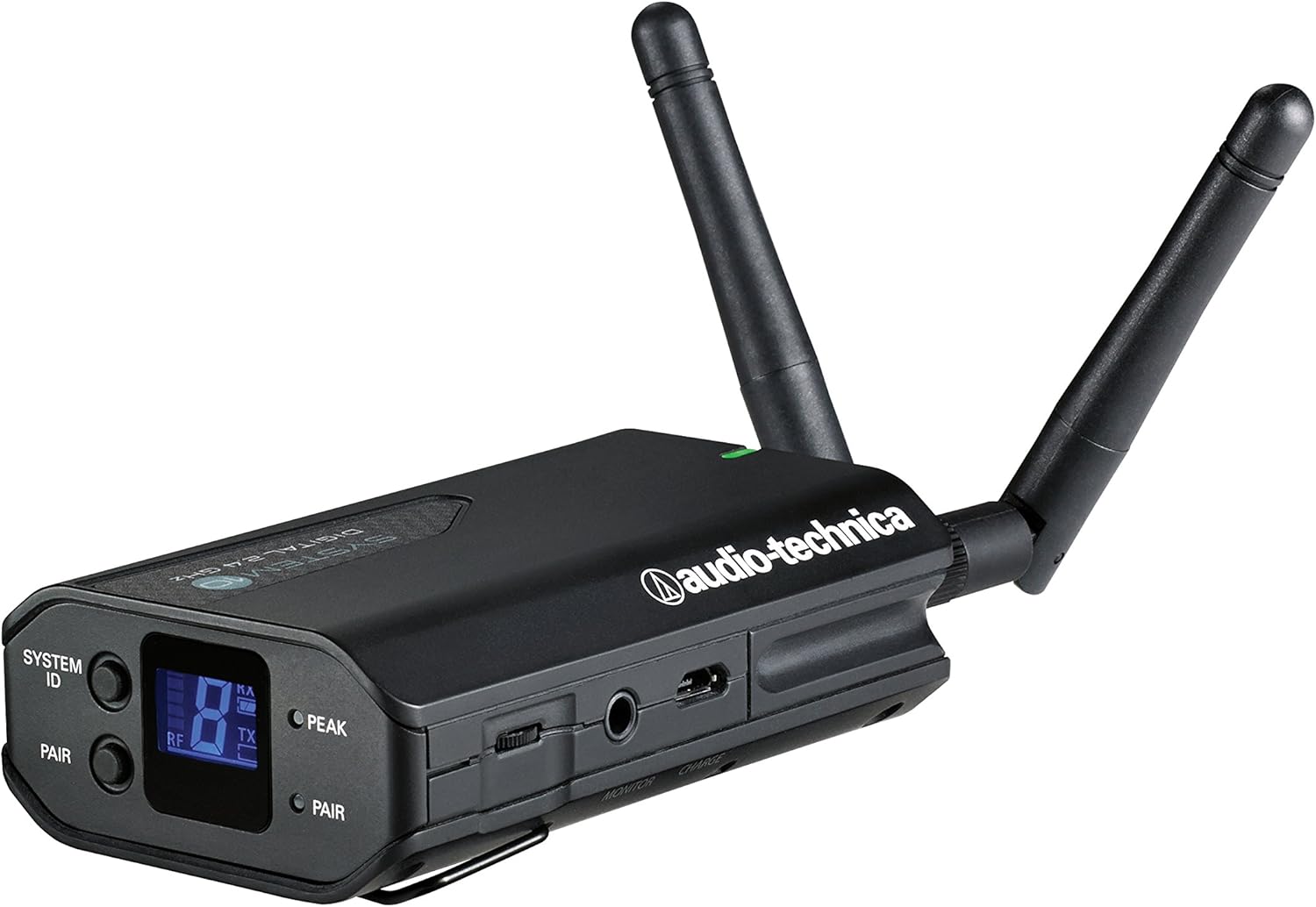

Ultra compact receiver size with multiple mounting options; selectable balanced and unbalanced output jacks with level control for use with most cameras and recording devices

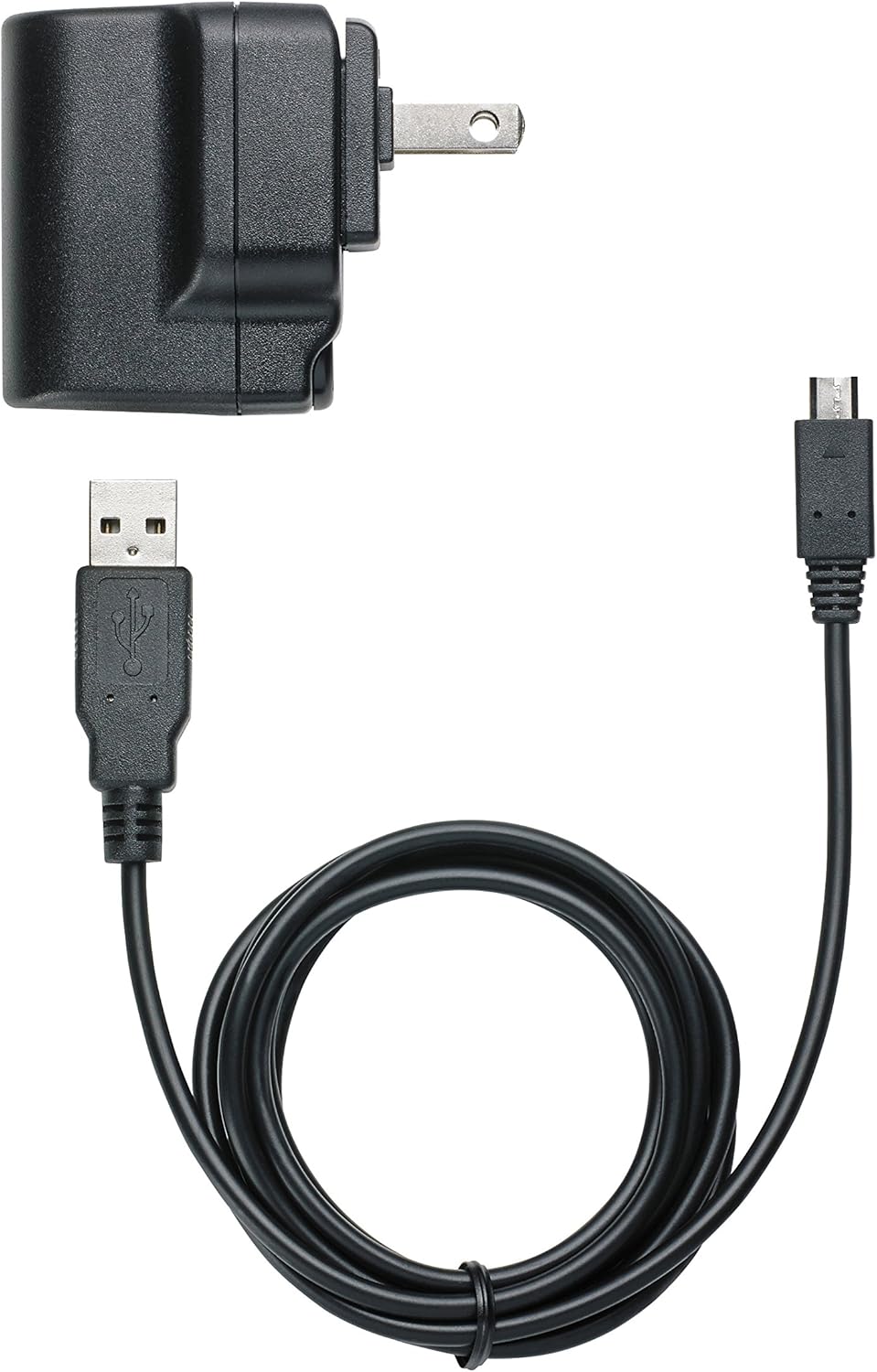

Internal rechargeable 12 hr battery, separate headphone port and volume control for local audio monitoring

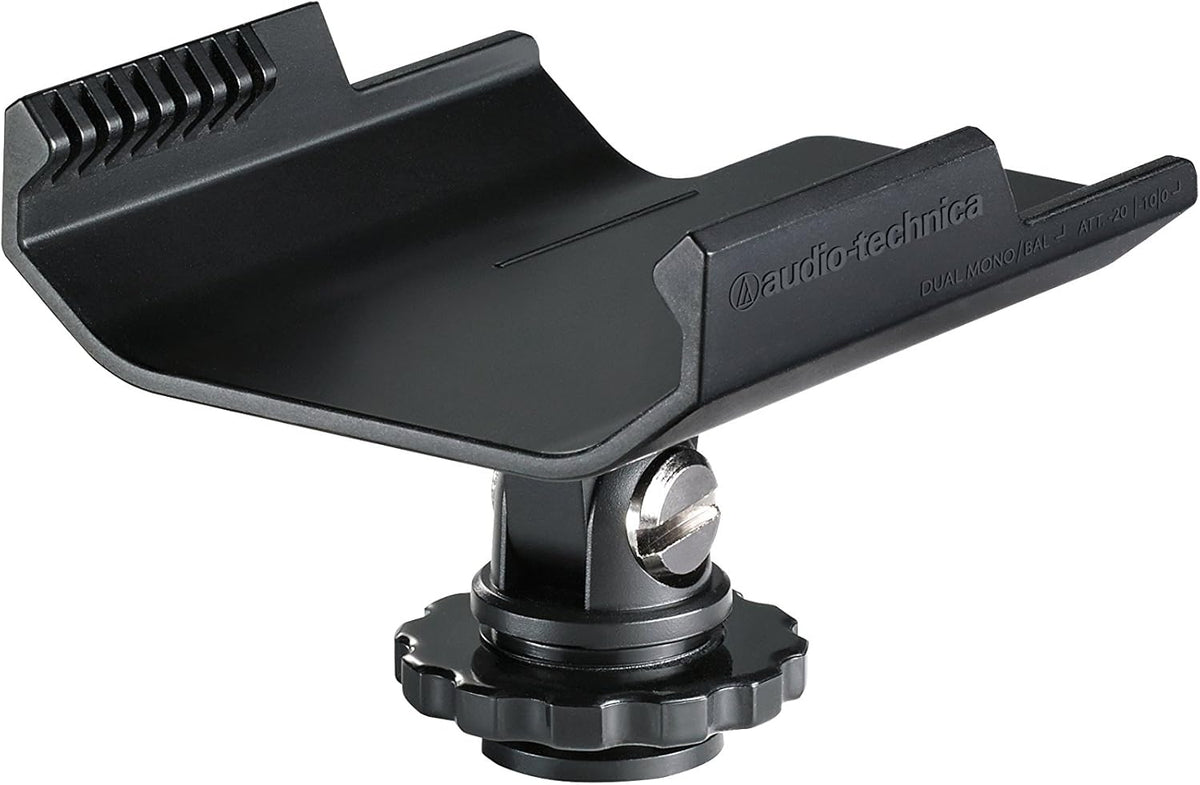

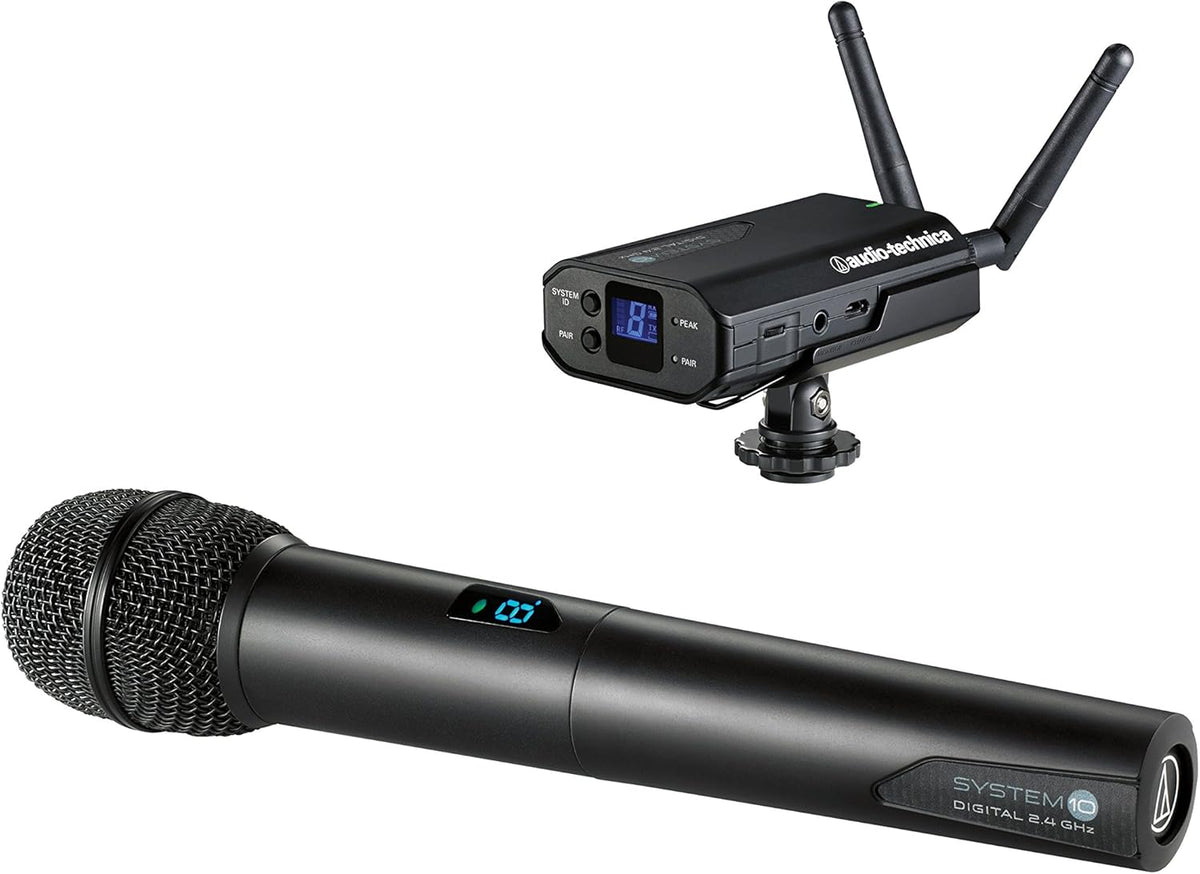

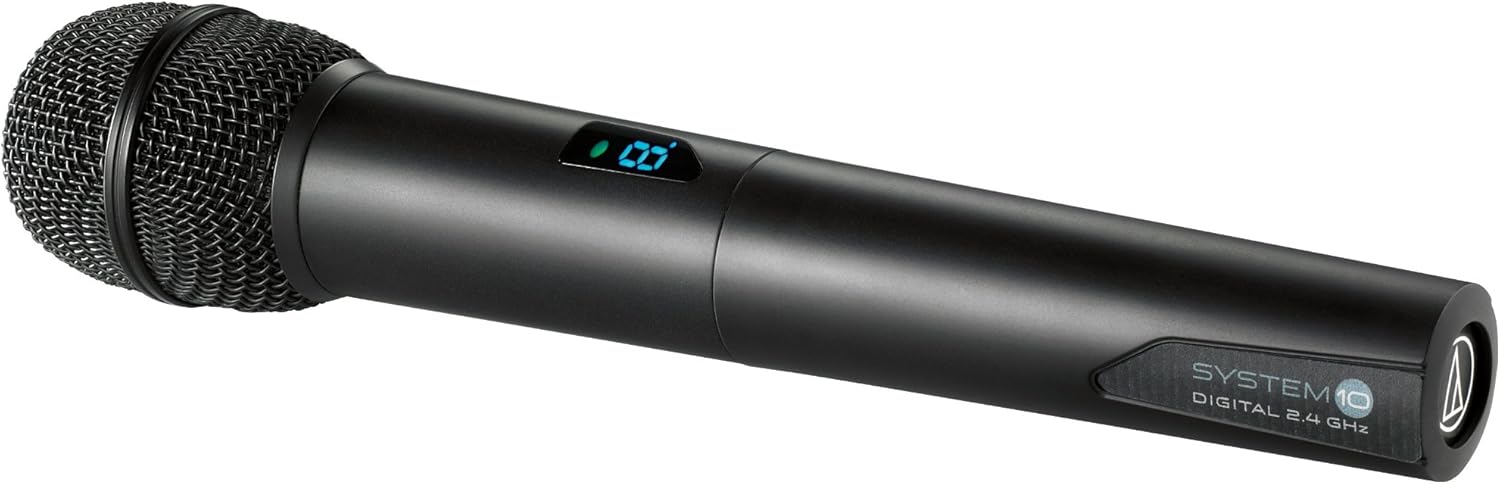

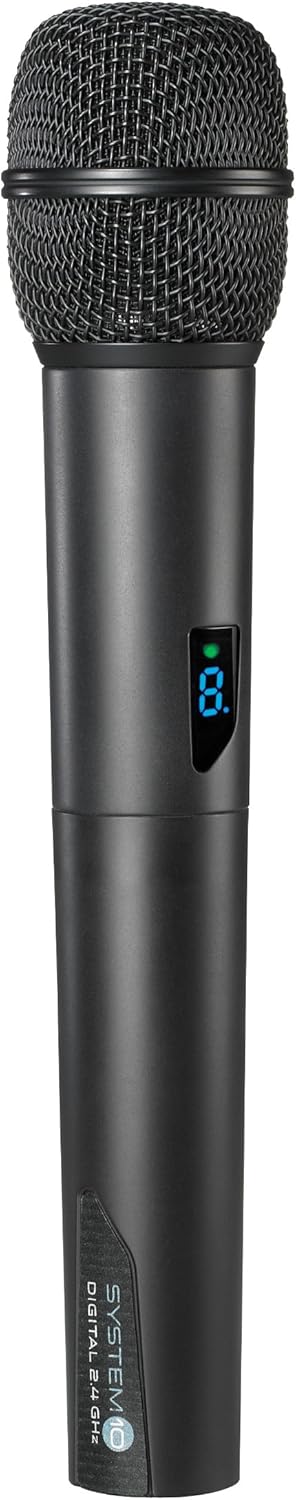

With its compact, portable design, the system 10 Camera-Mount high-fidelity digital wireless system is ideally positioned to capture media on the go. Perfect for video production, electronic news gathering (ENG) and every mobile application in between, the receiver features multiple mounting options to accommodate a variety of cameras and recording devices. Like all of the products in the system 10 wireless family, the Camera Mount provides three levels of diversity assurance: frequency, time and space. Instantaneous channel selection, sync and setup make the Camera-Mount extremely easy to use, while its digital 24-bit/48 kHz wireless operation provides the ultimate in sound quality and dependable performance. Also, as the receiver operates in the 2.4 GHz range, it remains completely free from TV interference at all times. Available in handheld, lavalier and body-pack configurations, each system 10 Camera-Mount wireless system includes a camera shoe mount in addition to the receiver and transmitter.
| System 8 VHF Wireless Systems | System 9 Frequency-agile VHF Wireless Systems | System 10 2.4GHz Digital Wireless Systems | System 10 Stompbox 2.4GHz Digital Wireless System | System 10 Camera-Mount Portable 2.4GHz Digital Wireless Systems | |
|---|---|---|---|---|---|
| Number of Simultaneous Channels | 3 | 4 | 8 | 8 | 8 |
| Format | Analog | Analog | Digital | Digital | Digital |
| Operating Frequency | VHF highband, 169 MHz to 172 MHz | VHF highband, 169 MHz to 172 MHz | 2.4 GHz ISM band | 2.4 GHz ISM band | 2.4 GHz ISM band |
| Safely Transmits Outside of TV Band | Yes | Yes | Yes | Yes | Yes |
| Channel Setup | Fixed | Manual | Automatic | Automatic | Automatic |
| Frequency Response | 80 Hz to 13 kHz | 80 Hz to 13 kHz | 20 Hz to 20 kHz depending on microphone type | 20 Hz to 20 kHz depending on microphone type | 20 Hz to 20 kHz depending on microphone type |
| Output | Unbalanced 1/4' output jack | Balanced XLR and unbalanced 1/4' output jacks | Balanced XLR and unbalanced 1/4' output jacks | 1/4' (6.3 mm), TRS balanced | 3.5 mm (1/8'), TRS balanced: +6 dBV Dual mono, unbalanced: 0 dBV |
| Multiple Transmitter Pairing | No | No | Up to 8 | Up to 8 | Up to 8 |
| Antenna Operation | Dipole | Dipole | Diversity (receiver and transmitter) | Diversity (receiver and transmitter) | Diversity (receiver and transmitter) |
